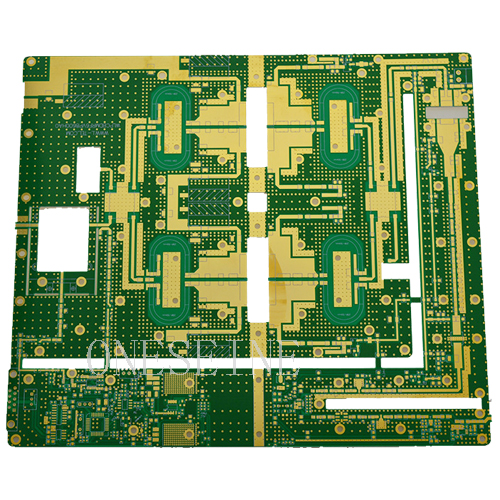

Rogers Board With Blind Hole In 0.79mm Hole In Pad Impedance Control Pcb Board Prototype

Rogers Board With Blind Hole In 0.79mm Hole In Pad Impedance Control Pcb Board Prototype

Quick detail:

Brand: ONESEINE

Material:Isola FR406

Thickness: 5mil

Surface finish:ENIG

Min line:3mil

Min hole:0.1mm

Name: Rogers Board With Blind Hole In 0.79mm Hole In Pad Impedance Control Pcb Board Prototype

Key words: Hole In Pad pcb

Precision Rogers PCB Prototype with Blind Holes & Via-in-Pad Technology | 0.79mm Hole in Pad for High-Frequency Applications

We specialize in the manufacturing of high-precision Rogers PCB prototypes featuring blind hole via-in-pad (VIP) technology with a precise 0.79mm hole diameter, designed for advanced impedance control and high-frequency performance. Ideal for RF, microwave, and high-speed digital applications, our PCBs combine the low-loss properties of Rogers materials with meticulous layer-to-layer registration and reliable microvia fabrication.

Key Features & Benefits:

✅ Blind Hole via-in-Pad Design: Maximizes board space and minimizes signal path inductance, ensuring superior electrical performance in compact layouts.

✅ 0.79mm Hole in Pad Precision: Manufactured with tight tolerances to meet demanding design requirements.

✅ Controlled Impedance PCB: Engineered for consistent signal integrity in high-frequency circuits.

✅ Rogers Material Expertise: Leveraging high-frequency laminates (e.g., RO4003C, RO4350B) for minimal signal loss and thermal stability.

✅ Rapid Prototyping: Fast turnaround on prototype quantities with full electrical testing and quality assurance.

Whether you're developing aerospace communication systems, 5G infrastructure, or high-speed digital devices, our Rogers PCB prototypes deliver the reliability and precision you need.
